Contour ShowerDec Wetroom Tray Floor Former 1200mm x 750mm With Waste
Regular Price: £29.96
PACKAGE PRICE (Incl. VAT.) £29.96
• Allows bathroom to become a wheelchair friendly or walk-in wetroom.
• FEA* tested to withstand weights of 635kg/100 Stones
• 24mm thick for strength and rigidty.
• Easily locates in solid floors or wooden floors without the need for joist modification. s.
• Lifetime guarantee.
Purchase eligible for VAT Free - If you are disabled or chronically sick you could qualify to purchase this product VAT free. Find out more here
Contour ShowerDec Wetroom Tray Floor Former 1200mm x 750mm With Waste & Optional Tanking Membrane

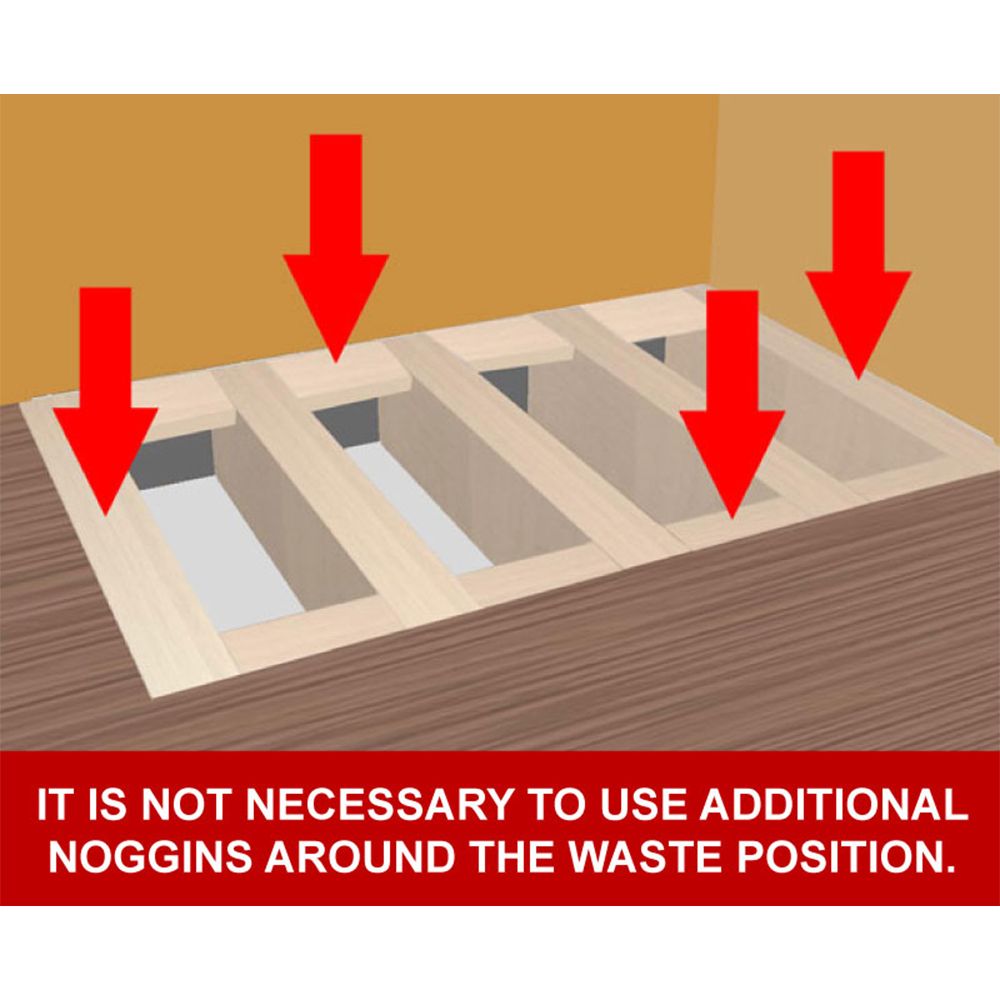

Create an easy access, user friendly wetroom quickly and simply by installing a ShowerDec from Contour Showers. Contour ShowerDecs are exceptionally strong and been FEA* tested to withstand weights of 635kg / 100 Stones and as such, it is not necessary to use additional noggins around the waste position assisting ease & speed of installation. They are 24mm thick for strength and rigidity, and feature a 40mm flat area around the former perimeter for shower doors to sit securely, creating a watertight seal.
All Contour ShowerDecs have a lifetime Manufacturers Guarantee.
Tested in accordance with a standard floor with 16" joist centres of 47mm width & supported around the floor former outer edges. No additional support around the waste area.
ShowerDec Features

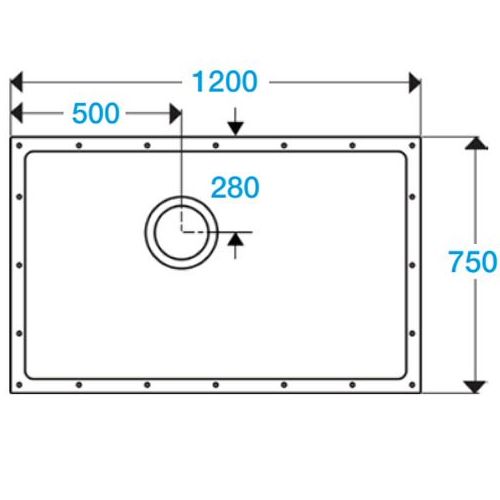

• Size: 1200mm x 750mm
• Allows bathroom to become a wheelchair friendly or walk-in wetroom.
• Exceptionally strong design FEA* tested to withstand weights of 635kg / 100 Stones
• 24mm thick for strength and rigidity.
• Easily locates in solid floors or wooden floors without the need for joist modification.
• 40mm flat area around the floor former perimeter for shower doors to sit securely, creating a watertight seal.
• Larger shower area, ideal for wheelchairs.
• Lifetime guarantee.
Installer Friendly
• No raised collar around the underside of the waste making installation on timber floors easier.
• Circular ribbed underside designed for setting into a concrete or screed base
• Textured top surface allows excellent adhesion of vinyl flooring.
• Excellent falls built into the top surface.
• Pre-formed semi-drilled fixing points.
• Can be cut to size in virtually any position using a circular saw or jigsaw.
• Suitable for timber & screeded floors.
• Offset waste positions to avoid joists.

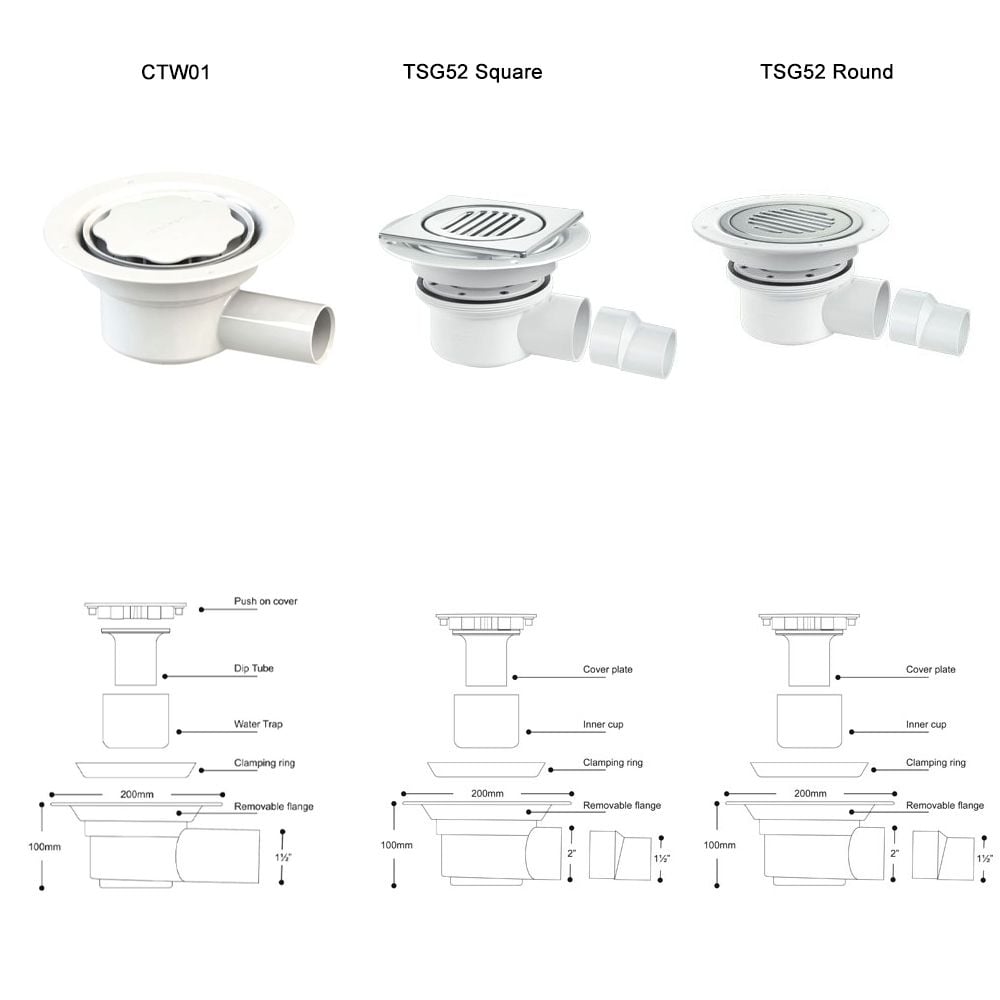

Waste Options:
McAlpine TSG52 Square Waste- 2 part, 50mm water seal trapped gully, flow rate 40 Litres/min. Suitable for tiled floor only
McAlpine TSG52 Round Waste - 2 part, 50mm water seal trapped gully, flow rate 40 Litres/min. Suitable for vinyl floor only
Contour CTW01 Gravity Trap - 2 part, 50mm water sealed, flow rate 26 Litres/min. Suitable for vinyl floor only
Contour CUW01 Pumped Shower Trap - For use with P12 shower pump. 45mm deep, push cover plate with 22mm outlet. Suitable for vinyl floor only. *Contour P12 shower pump sold separately.
Tanking Membrane Kit Options:
Contour Tanking Membrane Kit 5m² - 500ml primer, 10m reinforcing tape, 1 x jointing compound, 4 x pre-formed internal corners
Contour Tanking Membrane Kit 10m² - 500ml primer, 10m reinforcing tape, 1 x jointing compound, 4 x pre-formed internal corners
• Pre-formed flexible self adhesive waterproof tanking membrane kit
• Permanent waterproof bond for use prior to laying tiles onto a wet room floor
• Once applied, the wetroom waterproof membrane is ready to tile immediately
• Wet room membrane is cold applied, consisting of a 1mm thick butyl waterproof layer, incorporating a fleece on one side
• Can be installed over a thermal board. Heating restricted at 32°. Electrical heating max 150w
• Ideal for use on timber, masonry, concrete, plasterboards, gypsum & existing ceramic or natural stone
Contour Part Numbers:
ShowerDec Wetroom Tray Floor Former - SD1200X750
McAlpine Square Waste - 08GT52-S
McAlpine Round Waste - 08GT52-R
Contour Gravity Trap - 08CTW01
Contour Pumped Shower Trap - 08CUW01
Contour Tanking Membrane Kit 5m2 - 15WTK05
Contour Tanking Membrane Kit 10m2 - 15WTK10
Downloads
Contour ShowerDec Wetroom Tray Floor Former Installation
Contour Tanking Membrane Kit Instructions
MCAlpine TSG52 Square Waste Instructions
McAlpine TSG52 Round Waste Instrucions
| Manufacturers Part No. | SD1200X750 |
|---|---|
| Product Delivery Size | Oversized |
| Brand | Contour |
| Shower Tray Height | Ultra-Slim (Up to 30mm) |
| Waste Position | Offset Center Waste |
